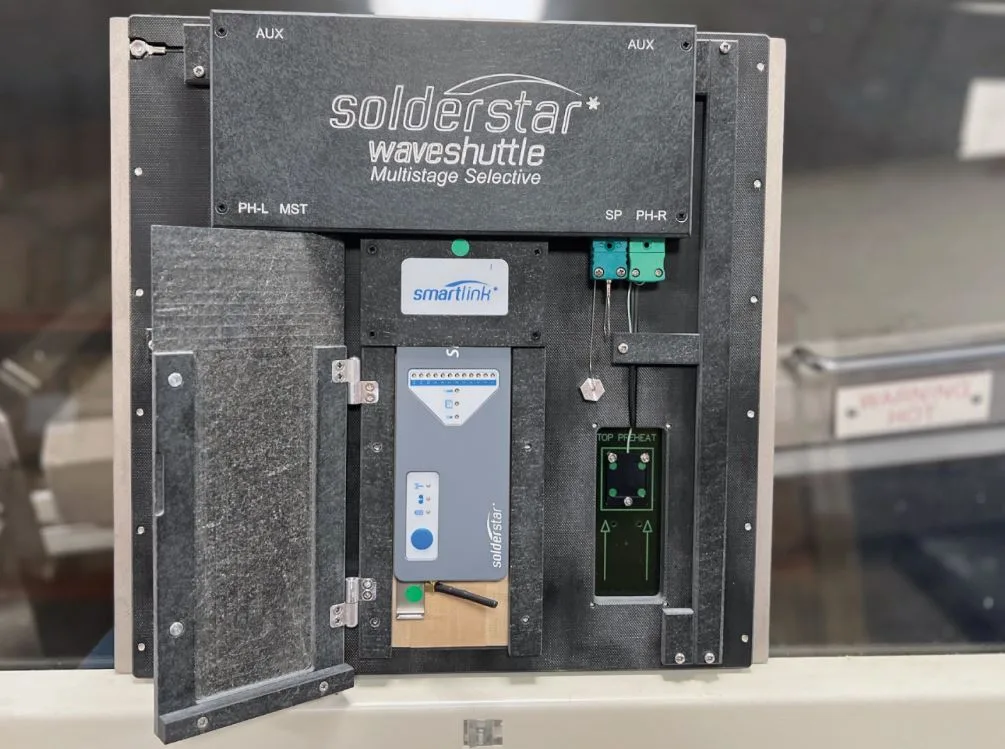

Multi-Stage Selective
The SOLDERSTAR Multistage system is designed to capture detailed thermal and process data from today’s multi‑nozzle selective soldering machines. Supporting up to 12 individual stages in a single pass, it provides a complete picture of preheat behaviour, solder contact, motion control and optional flux application, giving manufacturers the clarity needed to set up, verify and optimise complex selective processes.

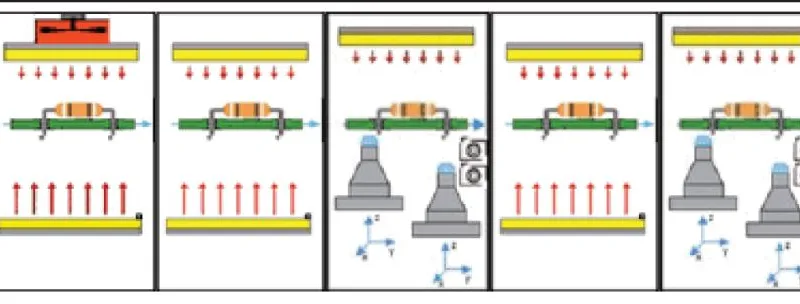

How Multi-Stage Selective Works
A streamlined process that turns complex selective soldering behaviour into reliable, actionable data.
Features
Capture up to 12 dual‑nozzle stages in one pass.
Record preheat, solder temp, contact time, X/Y speed and nozzle height.
Optional sensing module verifies correct flux application.
Prevents recording when temperatures exceed defined limits.
Adjustable channel, temperature and restart‑time settings.
Integrates seamlessly with SLX profilers and AUX modules.
Built to simplify profiling across complex selective soldering machines.
The Multistage system provides a structured, repeatable method for capturing every critical parameter in selective soldering. With configurable thresholds, optional flux detection, and robust start‑inhibit logic, it ensures only valid, high‑quality data is recorded — even on machines with multiple soldering heads and advanced motion control. It adds clarity to each stage of the process, helping engineers verify setup conditions, compare runs, and maintain consistent profiling performance across varied production environments.
