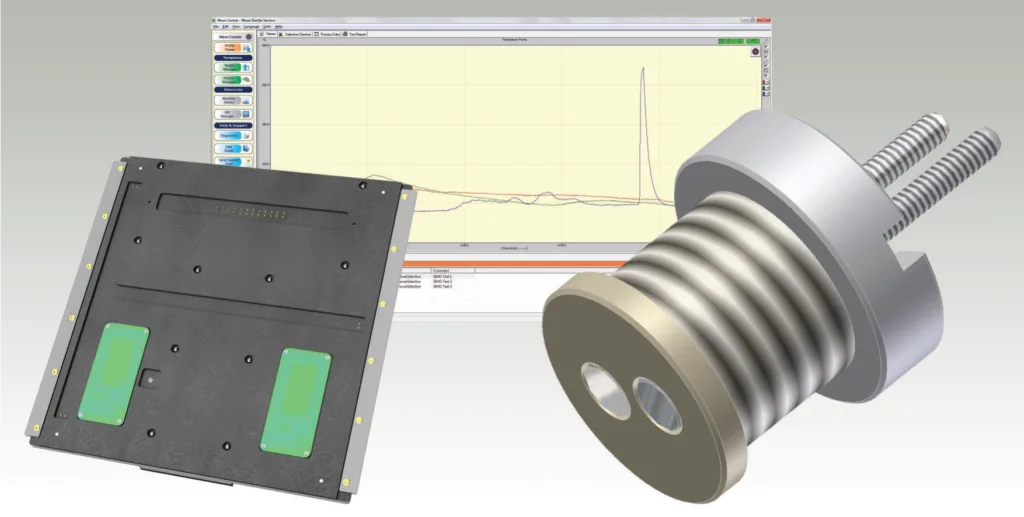

Selective Flux Sensors
The Wave Selective Flux Sensor expands the Solderstar Mini‑Wave selective measurement pallet to include flux detection capability. Designed to identify mis‑sprays, nozzle clogs, and X/Y positioning errors, it ensures flux is applied precisely where it’s needed — improving soldering quality and long‑term reliability across selective soldering processes.
A simple, reliable way to confirm accurate flux application
Clear, reliable verification of selective flux application The WaveSelective Flux Sensor uses a four‑point detection system to confirm that flux is deposited accurately, consistently and in the correct location.
Features
A compact, integrated system designed to detect mis‑sprays, nozzle clogs and positioning errors before they impact solder quality.
Detects flux presence and position directly on the Mini‑Wave pallet.
Identifies misalignment and incorrect flux targeting.
Highlights spray irregularities before they affect solder quality.
1 mm sensor spacing enables detection of typical 2–3 mm flux deposits.
Adjustable detection parameters for different flux chemistries.
Adds a dedicated chart for visual pass/fail confirmation.
Comprehensive flux verification for selective process control
The WaveSelective Flux Sensor option gives manufacturers a dependable way to validate flux deposition as part of daily machine checks. By combining flux detection with contact, nozzle height, and temperature profiling, it provides a complete picture of the selective soldering process — helping engineers maintain consistent quality and prevent costly rework.

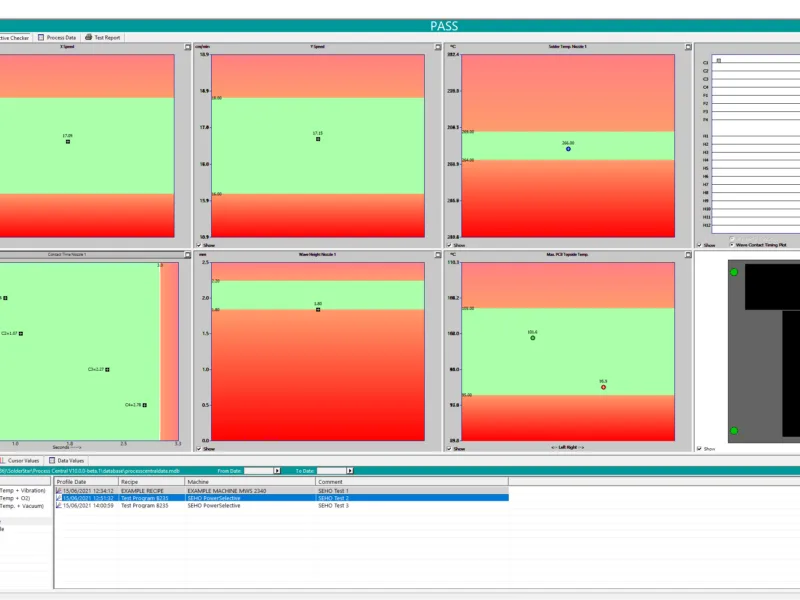

Adaptable software for different flux types
Different flux chemistries behave differently on sensor surfaces. The system’s programmable thresholds allow easy adjustment of detection sensitivity, ensuring accurate measurement across a wide range of flux formulations. This flexibility makes the WaveSelective Flux Sensor a future‑proof addition to any selective soldering setup.
