R-0625-SLX 6 Channel Reflow Profiler
The R‑0625‑SLX is a compact, high‑accuracy reflow profiling system engineered for manufacturers who require fast setup, reliable thermal measurement and complete visibility into their soldering processes. With six Type‑K channels, robust thermal protection and Solderstar’s SmartLink datalogger technology, it delivers the precision and repeatability needed to maintain process quality across modern SMT production.
Precision Thermal Measurement Through a Smart, Compact Workflow

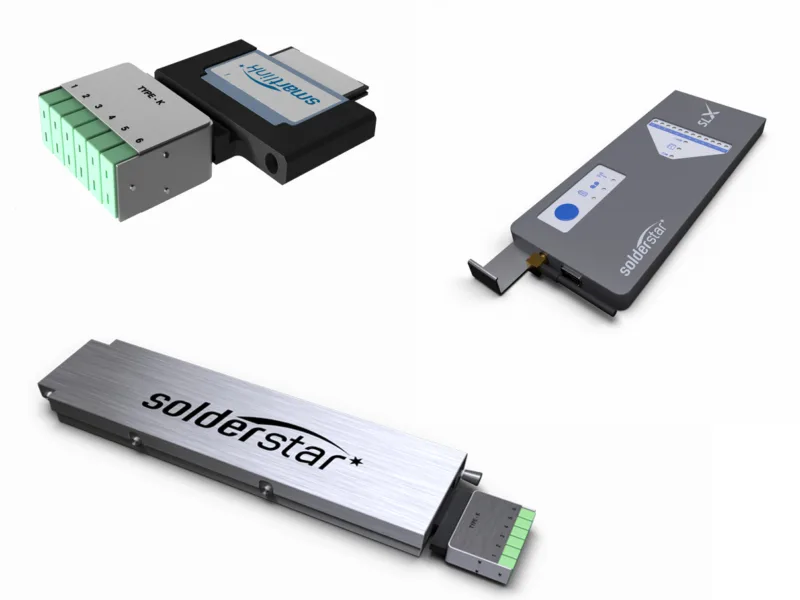

The R‑0625‑SLX combines a rugged heatshield, six Type‑K channels and the ultra‑compact SmartLink datalogger to capture accurate, real‑process temperature data as it travels through the reflow oven.
Features
The R‑0625‑SLX is built to give engineers dependable, high‑quality thermal data through a combination of robust hardware, precise measurement capability and flexible connectivity.
The profiler captures temperature data from six independent Type‑K inputs, allowing engineers to monitor key PCB locations simultaneously. This multi‑point visibility ensures accurate assessment of thermal gradients and component heating behaviour.
The SmartLink datalogger provides 12 Type‑K channels, automatic sensor detection and generous onboard memory, all within an ultra‑compact footprint. Its modular design enables quick attachment to other Solderstar fixtures for profiling across multiple soldering processes.
A precision‑engineered stainless‑steel heatshield safeguards the datalogger during pass‑through profiling, offering extended survival at elevated temperatures up to 250°C (time‑dependent). This ensures the profiler can withstand real‑world production conditions.
With ±0.5°C accuracy and 0.05°C resolution, the R‑0625‑SLX provides the precision required for verifying oven performance, validating reflow recipes and maintaining consistent soldering quality across high‑volume SMT lines.
Engineers can download data via high‑speed USB or stream measurements in real time using the optional 2.4 GHz wireless telemetry system. With 128 selectable channels, it ensures stable, interference‑free communication.
Designed for repeated thermal cycling, the high‑temperature NiMH battery provides reliable power throughout profiling runs. Its user‑replaceable design minimises downtime and supports long‑term operational durability.
High‑Accuracy Profiling for Demanding SMT Processes
The R‑0625‑SLX is engineered to deliver dependable thermal data across a wide range of PCB assemblies, from lightweight boards to high‑mass designs. Its ±0.5°C accuracy and fine measurement resolution allow engineers to confidently validate oven performance, confirm thermal uniformity and optimise reflow recipes with precision. Combined with six independent Type‑K channels, the system provides a detailed view of how components, joints and board regions heat throughout the process, making it ideal for both initial setup and ongoing process verification.
SmartLink Flexibility and a Complete Software Ecosystem

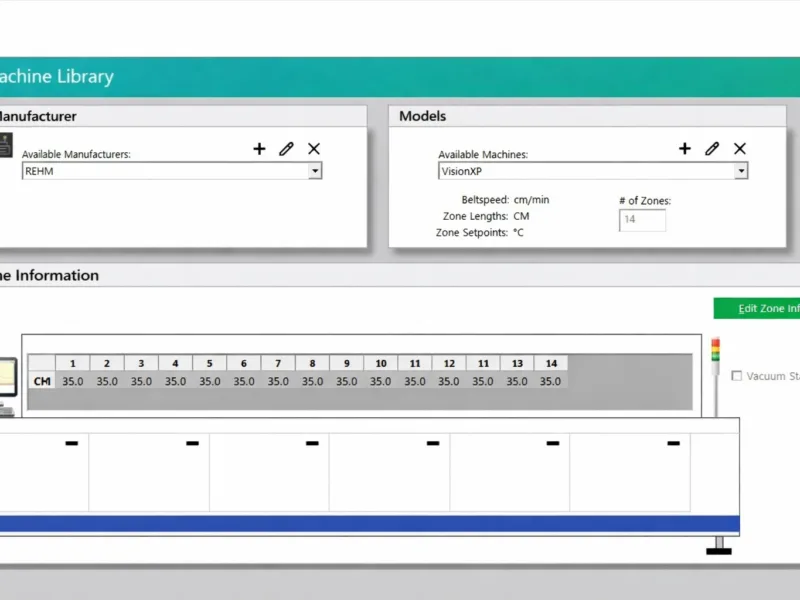

Built around Solderstar’s SmartLink architecture, the profiler can be quickly reconfigured for wave, selective or vapour phase soldering using the same datalogger, reducing equipment overhead and simplifying workflow. The accompanying software suite enhances this flexibility with oven libraries, solder paste specifications, simulation tools and SPC charting. Engineers can analyse profiles, compare against historical data, run predictive simulations and maintain long‑term traceability; all from a single, integrated platform designed to support continuous process improvement.
