R-1225-SLX 12 Channel Profiler
The R‑1225‑SLX 12‑Channel Reflow Profiler delivers advanced thermal insight for today’s most complex PCB assemblies, combining an ultra‑compact SLX datalogger with a high‑performance heatshield and SmartLink connectivity. Designed for high‑density, multi‑layer products and thermally sensitive components, it provides extensive measurement coverage across critical joints, surfaces and shadowed areas, ensuring complete process visibility, accurate characterisation and reliable solder quality.
Precision Thermal Measurement Through a Smart, Compact Workflow
The R‑1225‑SLX integrates advanced hardware and intelligent software to simplify high‑density, multi‑channel profiling.
Features
The R‑1225‑SLX is engineered to deliver maximum thermal visibility through expanded 12‑channel measurement capability, compact SmartLink architecture and robust high‑temperature protection.
Maximum thermal visibility for complex, high‑density, and multi‑layer PCB assemblies.
Ultra‑slim 126 mm × 52 mm × 9.5 mm design, maintaining the same width as the standard SLX platform.

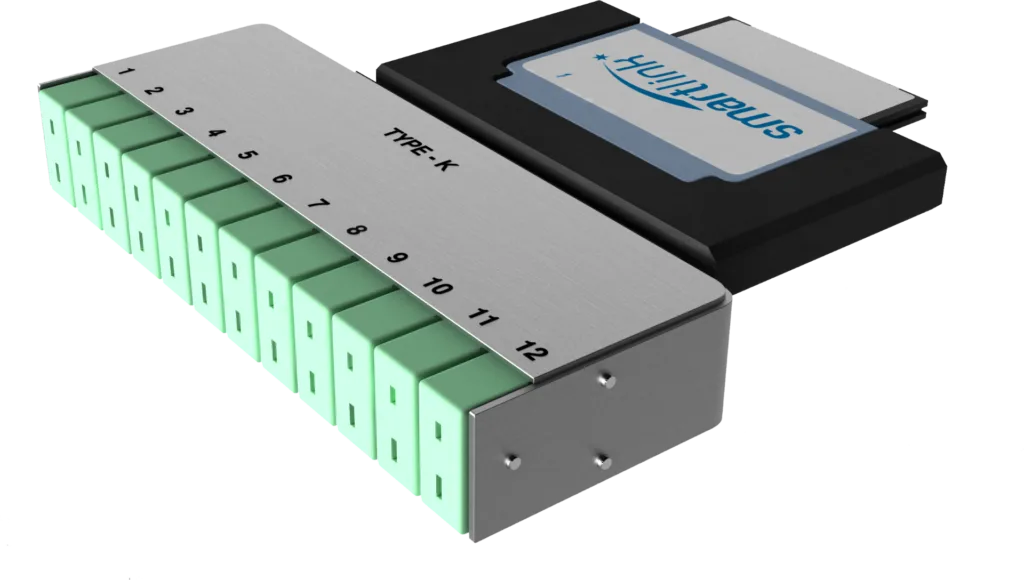

Stainless‑steel construction with twelve Type‑K sockets, engineered for extended survival at elevated temperatures.
Flexible data transfer options, including real‑time wireless monitoring.
Built‑in diagnostics verify thermocouple integrity before each run.
Comprehensive thermal visibility for modern PCB designs
The R‑1225‑SLX is built for manufacturers working with the most demanding assemblies. Its twelve‑channel capability allows engineers to monitor more locations simultaneously — capturing the thermal behaviour of large BGAs, PoP devices, power components, and shadowed areas — all in a single pass.
Compact design with advanced software support

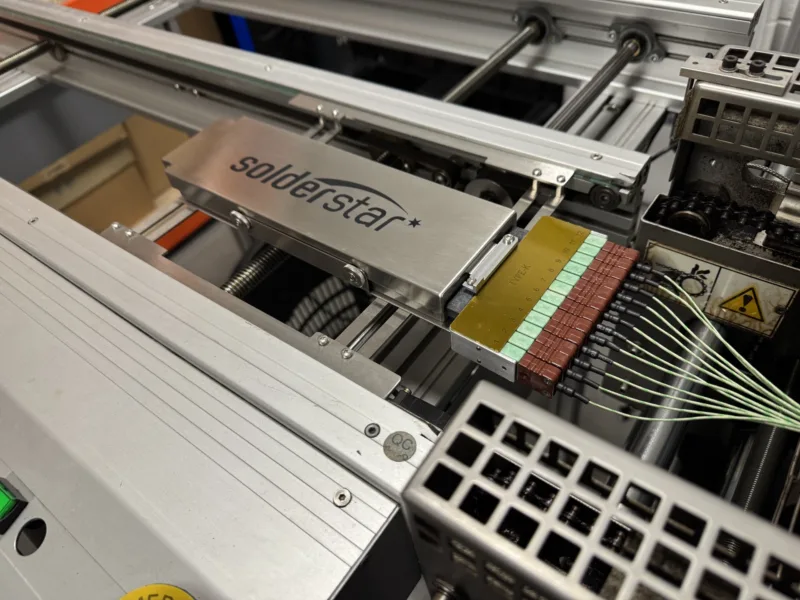

Despite its expanded channel count, the profiler retains the same compact width as the standard SLX platform, ensuring smooth travel through tight reflow environments. Combined with its robust heatshield and powerful software suite, the R‑1225‑SLX provides a complete solution for process setup, optimisation, and long‑term verification, without overwhelming the operator.
